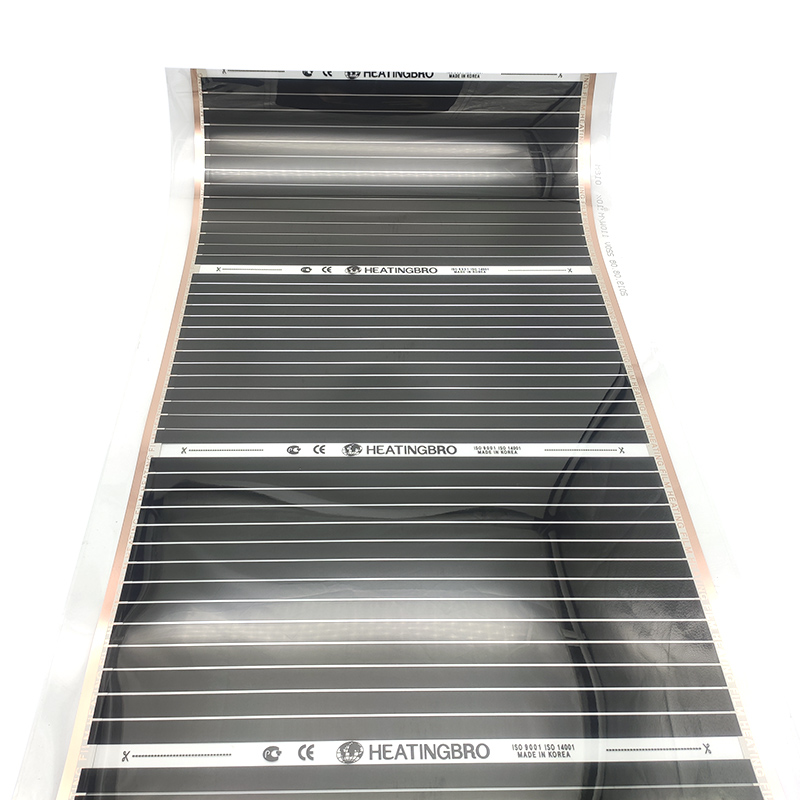

Analysis of the Safety of Self-Limiting Temperature Carbon Fiber Heating Films: Principles, Advantages, and Risk Prevention

As a new type of electric heating material, self-limiting temperature carbon fiber heating films are widely used in fields such as building heating, household appliance hot compresses, and pipeline insulation due to their characteristics of energy saving, flexibility, and uniform heating. Their safety is the core concern of users, and a comprehensive judgment of their safety attributes requires a comprehensive analysis from three aspects: technical principles, core safety advantages, potential risks, and prevention measures.

1.First, Understand: The "Safety Core" Of Self-limiting Temperature Carbon Fiber Heating Film — the Principle of Self-limiting Temperature Technology

The self-limiting temperature function is the key that distinguishes this type of product from ordinary carbon fiber heating films, and it is also the "underlying guarantee" for its safety performance. The principle can be popularly understood as "actively braking when the temperature is too high":

• The core layer of the heating film is composed of a composite of carbon fiber heating wires and self-limiting temperature polymer materials (such as modified polyethylene, conductive composite materials);
• When the ambient temperature is low, the conductive paths in the self-limiting temperature material are dense, allowing current to pass smoothly, and the carbon fiber heating wires generate heat normally (with stable power);
• When the temperature rises to a preset "threshold" (usually determined by the material formula, such as 40-80℃), the self-limiting temperature material will undergo a "microstructural change" due to thermal expansion — the conductive paths are stretched and their number decreases, resulting in an increase in resistance;
• After the resistance increases, the current in the circuit automatically decreases, and the heating power decreases accordingly, preventing the temperature from continuing to rise; if the temperature drops, the conductive paths recover, and the power also rises, achieving "automatic temperature regulation with no risk of overheating".

2. "Safety Advantages" of Self-Limiting Temperature Carbon Fiber Heating Film: Multiple Protections from Materials to Design

In addition to the core self-limiting temperature technology, its safety is also reflected in material properties, structural design, and compliance, which can be specifically summarized into 4 points:

• No local overheating, avoiding fire hazards:If ordinary heating films have "local damage or poor line contact", they are prone to "hot spots" (sudden local temperature rise). However, even if self-limiting temperature ones are subject to local force or uneven environment, they can limit the temperature through resistance adjustment, preventing surrounding materials (such as walls, carpets, furniture) from being ignited due to overheating.
• Strong insulation, preventing leakage risks:The heating layer of regular products will be wrapped with double insulation layers (such as temperature-resistant polyvinyl chloride, silicone rubber), with an insulation resistance usually ≥100MΩ (far higher than the national standard requirement of ≥2MΩ), which can effectively insulate the current. Even when used in humid environments (such as bathrooms, kitchens), it can reduce the risk of electric leakage.
• High temperature and corrosion resistance of materials, stable service life:Carbon fiber itself has excellent high-temperature resistance (long-term service temperature can reach above 150℃, far exceeding the self-limiting temperature threshold), and is resistant to acids, alkalis, and not easy to oxidize; the self-limiting temperature polymer materials have undergone aging tests, and their service life can reach 10-15 years under normal use, avoiding short circuits and damage caused by material aging.
• Compatible with safety protection devices, double safeguards:In practical applications, self-limiting temperature heating films are usually used together with thermostats and residual current devices (RCDs): The thermostat can preset the maximum temperature (such as 50℃), forming a "double temperature limit" with the self-limiting temperature function; the residual current device can cut off the circuit within 0.1 seconds when there is a leakage (current ≥30mA), further reducing the risk of electric shock.

3.Unignorable "Potential Risks": Mostly Originating from "Non-product Itself" and Requiring Targeted Prevention and Control

The safety hazards of self-limiting temperature carbon fiber heating films are mostly not from "self-limiting temperature technical defects", but from external factors such as substandard product quality, improper installation, and illegal use. The common risks and prevention and control measures are as follows：

4、 Summary: The Key to Safety Lies in "Choosing the Right Product+Standardized Use"

The technical principle of self limiting carbon fiber heating film determines that its inherent safety is higher than that of ordinary heating film, but "safety" is not absolute and two prerequisites must be met:

• Choosing the right product: Reject low-priced and inferior products, and prioritize selecting legitimate products that have passed international electrical safety certification and have clear self limiting temperature thresholds (matching the usage scenario, such as floor heating recommended at 40-50 ℃ and hot compress recommended at 50-60 ℃);
• Standardized process: Installed by a qualified team (especially when embedded in walls or floors), used according to the instructions, and regularly checked for circuit and insulation status.

As long as these two points are well done, the self limiting carbon fiber heating film can maximize its energy-saving and flexible advantages while minimizing safety risks, making it suitable for various scenarios such as homes and commercial places.
